Description
| Basic Information: |
|
CPU
|
Onboard Intel Comet Lake Intel Core i7 10510U 1.8GHz up to 4.90GHz Quad Cores 8 Threads |
| TDP |
15W |
| Motherboard |
140 x 130mm customized size |
| Chipset |
Intel Comet Lake |
| Memory |
2 x SO-DIMM DDR4 Slot
Support 4GB/8GB/16GB/32GB/64GB
DDR4-2666, LPDDR3-2133 |
| OS |
Windows 10/Linux |
| PXE |
YES |
| Audio |
Intel High Definition Audio Controller |
| Network |
1 x Onboard Intel Ethernet Connection I219-LM
1 x Onboard Realtek RTL8168/8111/8112 Gigabit Ethernet Controller
10/100Mbps/1000Mbps BaseT LAN |
| Video |
Intel® UHD Graphics |

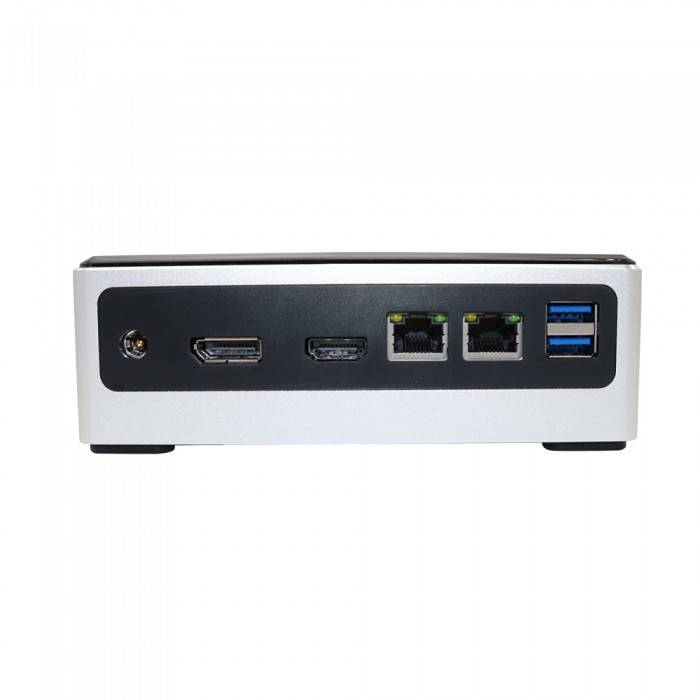

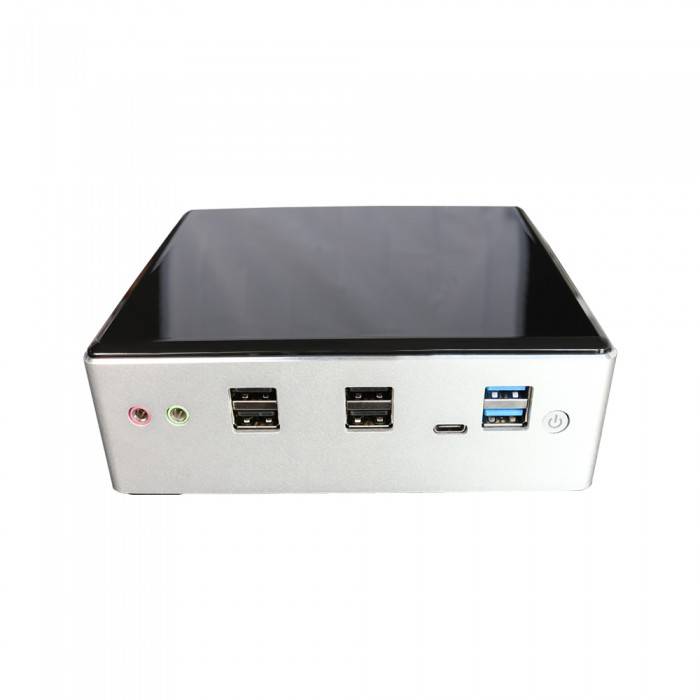

| Input/output port |
| Switch |
1 x Power On/Off Switch |
| Power |
1 x Power In |
| USB |
4 x USB2.0, 4 x USB3.0 |
| SD Card |
1 x SD Card Reader |
| USB-C |
1 x Type-C USB3.0 |
| Display |
1 x DP, 1 x HDMI 2.0 |
| LAN |
2 x RJ45 Giga LAN |
| Audio |
1 x MIC, 1 x SPK |
| Storage |
|
| MSATA |
1 x M.2 slot for NGFF/NVME SSD, support 6Gb/s |
| SATA |
1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s(no space to install) |
| Wi-Fi |
|
| Module |
1 x M.2 NVME/NGFF slot for Wi-Fi module |
| Antenna |
2 x inner RF cables and without external antenna |
| Power and Working Environment |
| Input |
DC100-240V AC/50-60Hz |
| Output |
DC +12V~+19V, recommend 12V/5A |
| Operating Temperature |
0/70 Centigrade |
| Relative Humidity |
10%~85% |
| Product Dimension & Details |
| Size |
137*150*50mm |
| Weight |
Net 0.65kg, Gross 1.15kg |
| Shell |
Black color PVP top and aluminum alloy body |
| Cooling Mode |
With a copper cooling fan |
| Functions |
AWAL, PXE, Wake On LAN, RTC |
| Package Content |
|
| Standard |
1xMini PC, 1xPower Adapter, 1xPower Cord |
| Optional |
1xHDMI cable, 1xUser Manual |
Attentions:
1) About shipping：We supply Free Shipping. Price here include shipping cost. But if your address is remote area for us , you should add extra shipping fees for DHL/ UPS/EMS/Fedex etc. Normally we will provide DHL free shipping, but we will also send by the other carriers for free shipping in different cases, they are UPS/EMS or e-EMS/FedEx/TNT/ARAMEX etc. In general, it may take about 1 to 3 business days for delivery; （except the holidays）quantity OEM producing orders may take about 7 to 15 days depends on the exact order. We are not responsible for wrong or undelivered address. Please make sure your shipping address is correct and deliverable.
2) About systems：We can provide free OEM cracked win7/ 8/ 10/ Linux/ Ubuntu, etc. Default installed our OEM Window 10 OS in English for free , other languages can be selected amount: Russian, Spanish, Portuguese, French, German, Arabic, Italian, Japanese, Turkish, Greek etc. Seller are not responsible and makes no compensation for OEM system. Please note the Operating System you need when ordering.
3) About accessories：Accessories as Ram, SSD, HDD, we use famous brand: Samsung, Kingston, Micron, Sandisk, Hynix, Crucial, Liteon, Phison, T0shiba, HGST, WD, Seagate etc. What brand we use depends on our test and our stock. (The bundles is not including the HDD, if you need HDD, please talk with us online)
4) About customs：Price not including any import tax or other customs fee. We are not responsible for buyer’s customs any storage costs, brokerage, taxes or VAT etc fees. But we try our best to help buyer lower or avoid customs duties, usually write a value of USD $20-70 on package and describle item as “Mini PC”. If you have any questions or need to declare real price, pls don’t hesitate to contact with us in time, we will do everything we can to help you.
5) Please note the plug model you need when placing an order.
6) if you want to add any special requirements for the Mini PC you order, please tell us in your order
Warranty:
1）Every Mini PC you buy here has 3 years warranty service is completely reliable and professional technical team.
2）Motherboard warranty time 3 years, ram, hard drive, accessories(excluding gift) etc warranty time 1 year.
3）Within warranty time, if mini PC appear non-human damages and quality problems, buyer return Mini PC or Mini PC components, we free repair/exchange Mini PC or Mini PC components ( include RAMs, Hard Drive, Motherboard and other accessories ).
4）Within 1 month, seller bear all the shipping cost for return(maximum 15USD)and resend;Over 1 month to 1 year, buyer self bear the shipping cost for return and seller bear shipping cost for resend; Over 1 year to 3 years, buyer bear all shipping cost return and resend.
5）Within 15 days, we accept refund or exchange goods (buyer bear all the shipping cost, if non-human damages and quality problem, we bear all shipping cost. All time calculate from the day buyer receive goods.
